Sonata Plug-In Hybrid
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System (PHEV)
›
Manifold Absolute Pressure Sensor (MAPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

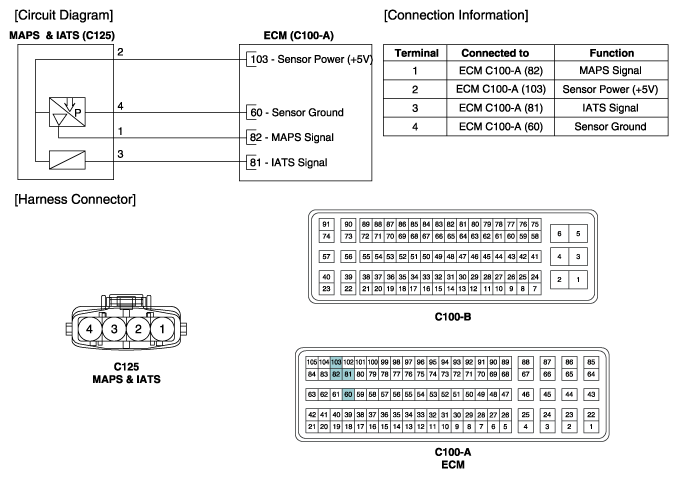

Fig 1: Manifold Absolute Pressure Sensor Schematic Diagrams And Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
