Circuit Diagram

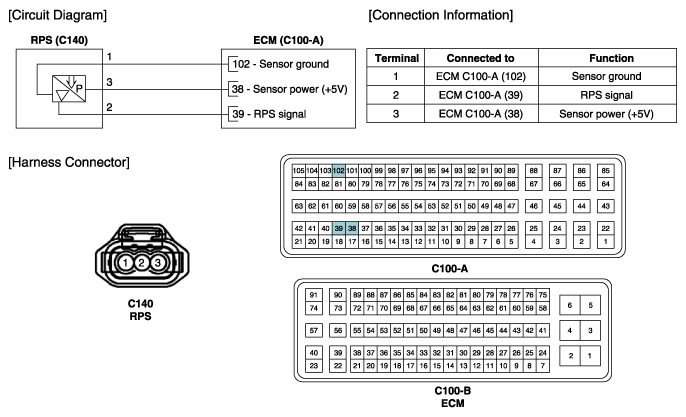

Fig 1: Rail Pressure Sensor Schematic Diagrams and Connector End View
G11631033Courtesy of HYUNDAI MOTOR AMERICA
