Engine Control/Fuel System - General Information (PHEV)
›
Troubleshooting
›
Basic Troubleshooting
›
Basic Troubleshooting Guide
Basic Troubleshooting Guide

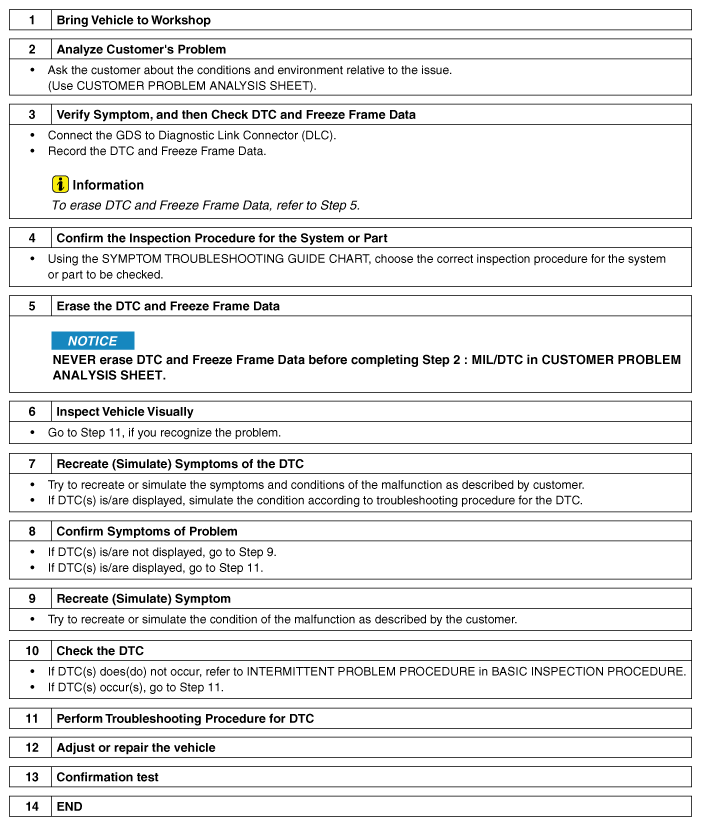

Fig 1: Basic Troubleshooting Guide Sheet
Courtesy of HYUNDAI MOTOR AMERICA
