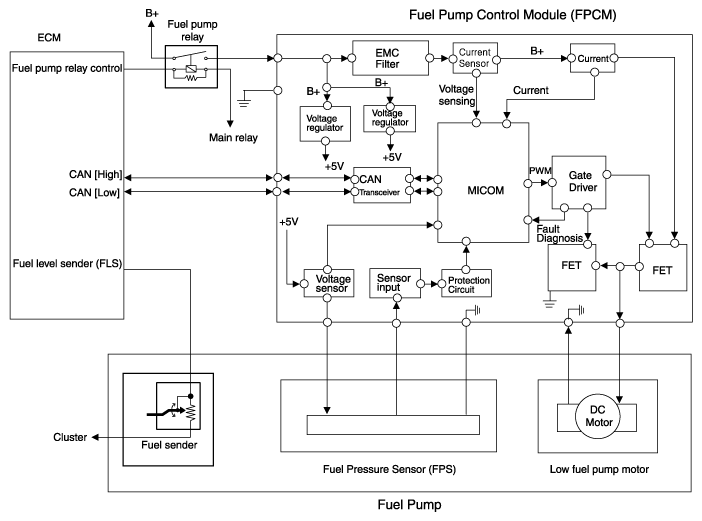

Home › Hyundai › 2017 › Sonata Plug-In Hybrid › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System (PHEV) › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
