Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front wheel and tire (A) from front hub.
Tightening torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

CAUTION: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).

Fig 1: Removing Front Wheel And Tire From Front Hub
Courtesy of HYUNDAI MOTOR AMERICA
Remove the brake caliper mounting bolts, and then place the brake caliper assembly (B) with wire.
Tightening torque:

78.4 ~ 98.0 N.m (8.0 ~ 10.0 kgf.m, 57.8 ~ 72.3 lb-ft)

Fig 2: Removing Brake Caliper Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the driveshaft caulking nut (A).
Tightening torque:

294.2 ~ 313.8 N.m (30.0 ~ 32.0 kgf.m, 217.0 ~ 231.5 lb-ft)

Fig 3: Removing Driveshaft Caulking Nut
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- The driveshaft lock nut should be replaced with new ones.
- After installation driveshaft lock nut, stake the lock nut using a chisel and hammer as shown in the illustration below.
  Caulking depth : 1.5 mm (0.591 in.)

  Fig 4: Staking Lock Nut Using Chisel And Hammer
  Courtesy of HYUNDAI MOTOR AMERICA
Remove the brake hose (A) and wheel speed sensor (B).
Tightening torque:

6.8 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 7.9 lb-ft)

Fig 5: Removing Brake Hose And Wheel Speed Sensor
Courtesy of HYUNDAI MOTOR AMERICA
Remove the tie rod end ball joint (C) from the knuckle.
1. Remove the split pin (A).
2. Remove the castle nut (B).
  Tightening torque:

  34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.5 lb-ft)

  Fig 6: Removing Castle Nut
  Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the ball joint (A) from knuckle using the special tool (09568-4A000).

Fig 7: Disconnecting Ball Joint From Knuckle
Courtesy of HYUNDAI MOTOR AMERICA
Remove the lower arm (A) mounting bolt and nut from the knuckle.
Tightening torque:

98.0 ~ 117.6 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.7 lb-ft)

Fig 8: Removing Lower Arm Mounting Bolt And Nut From Knuckle
Courtesy of HYUNDAI MOTOR AMERICA
Using a plastic hammer (A), disconnect driveshaft (C) from the axle hub (B).

Fig 9: Disconnecting Driveshaft From Axle Hub
Courtesy of HYUNDAI MOTOR AMERICA
Remove the RH side cover (A).
Tightening torque:

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

Fig 10: Removing RH Side Cover
Courtesy of HYUNDAI MOTOR AMERICA

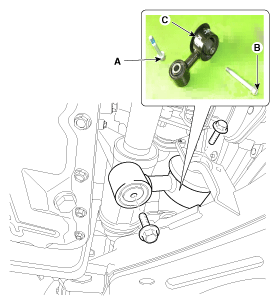

Remove the mounting bolts (A, B) of Upper roll rod bracket (C).
Tightening torque:
1. 107.9 ~ 125.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)
2. 49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)
CAUTION: Do not reuse bolts.

Fig 11: Removing Upper Roll Rod Bracket Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the inner shaft mounting bolts and then disconnect the inner shaft (A).
Tightening torque:

49.0 ~ 68.6 N.m (5.0 ~ 7.0 kgf.m, 36.2 ~ 50.6 lb-ft)

Information

By the shape and the engine bracket bolts are mounted differently.

Fig 12: Disconnecting Inner Shaft
Courtesy of HYUNDAI MOTOR AMERICA
Insert a pry bar (A) between the transaxle case and joint case, and separate the drive shaft (B) from the transaxle case.

Fig 13: Inserting Pry Bar Between Transaxle Case And Joint Case
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:
- Use a pry bar being careful not to damage the transaxle and joint.
- Do not insert the pry bar too deep, as this may cause damage to the oil seal.
- Do not pull the driveshaft by excessive force it may cause components inside the joint kit to dislodge resulting in a torn boot or a damaged bearing.
- Plug the hole of the transaxle case with the oil seal cap to prevent contamination.
- Support the driveshaft properly.
- Replace the retainer ring whenever the driveshaft is removed from the transaxle case.
Check the front alignment.
(Refer to Suspension System - "FRONT ALIGNMENT ")
