Components Location

WARNING: This page is about a different variant/trim than selected.

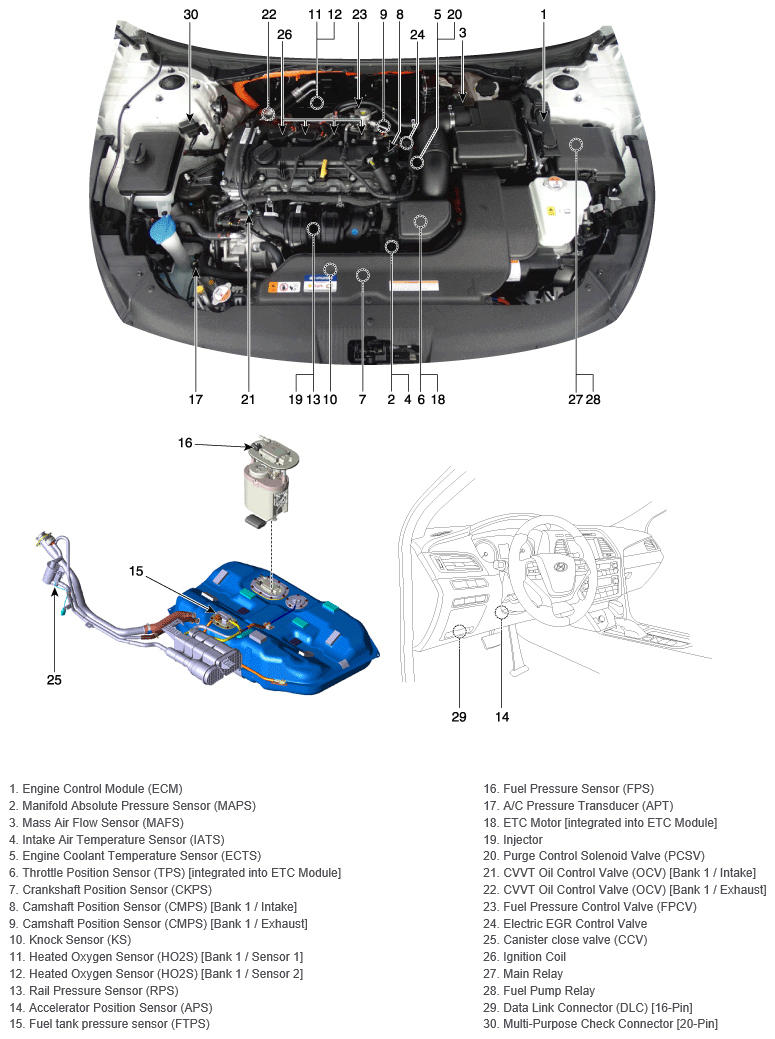

Fig 1: Engine Control System Components (1 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

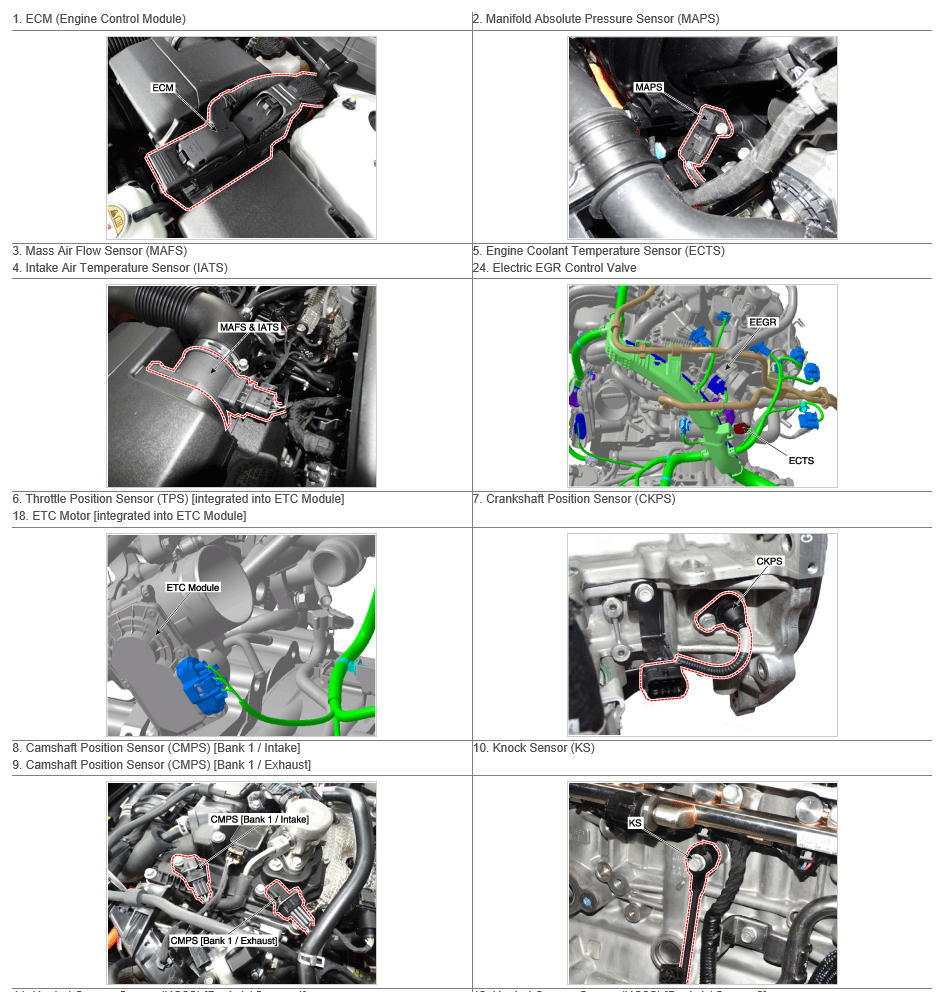

Fig 2: Engine Control System Components (2 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

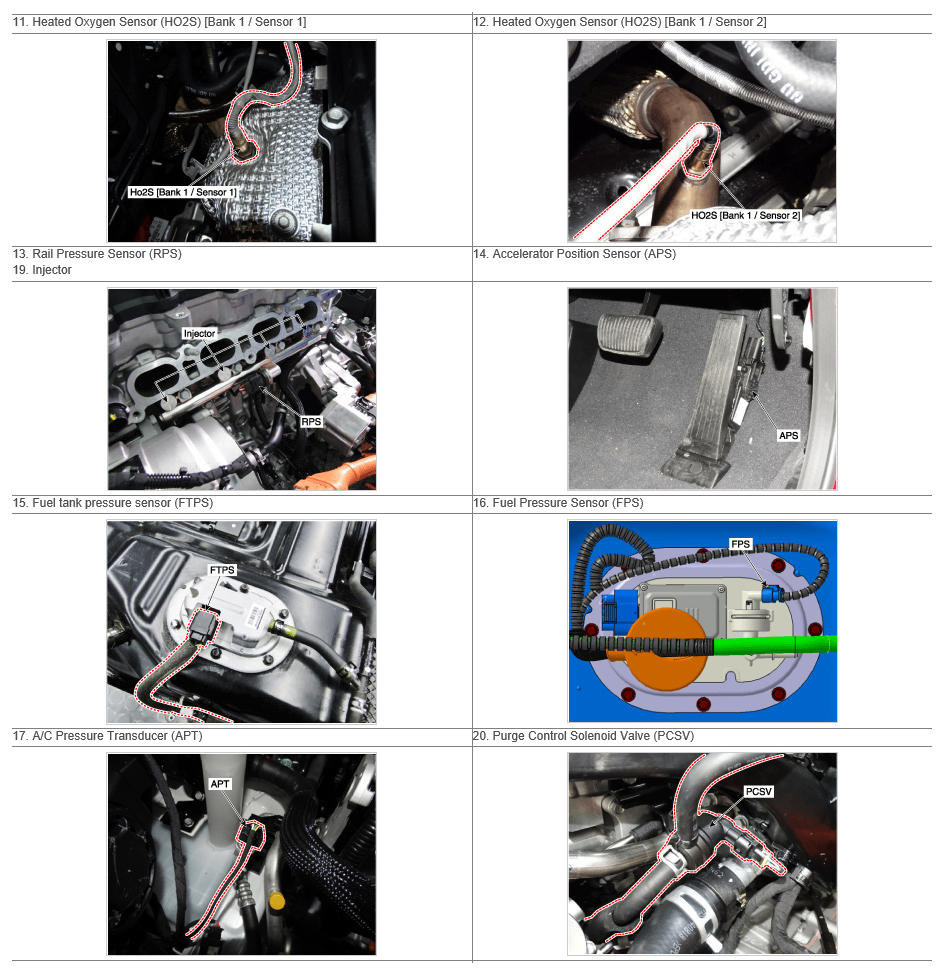

Fig 3: Engine Control System Components (3 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA

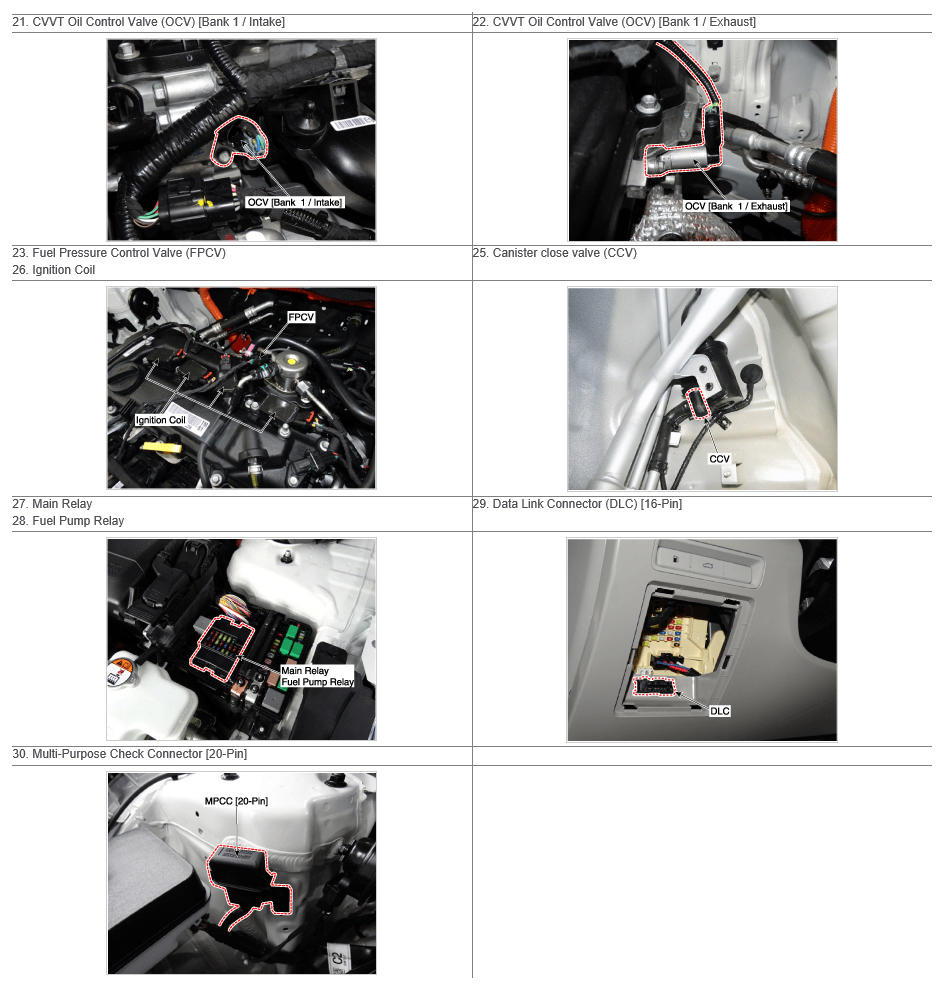

Fig 4: Engine Control System Components (4 Of 4)

Courtesy of HYUNDAI MOTOR AMERICA
