Automatic Transaxle Control System (PHEV)
›
Inhibitor Switch
›
Repair Procedures
›
Inspection
›
Inspection flow
Inspection flow

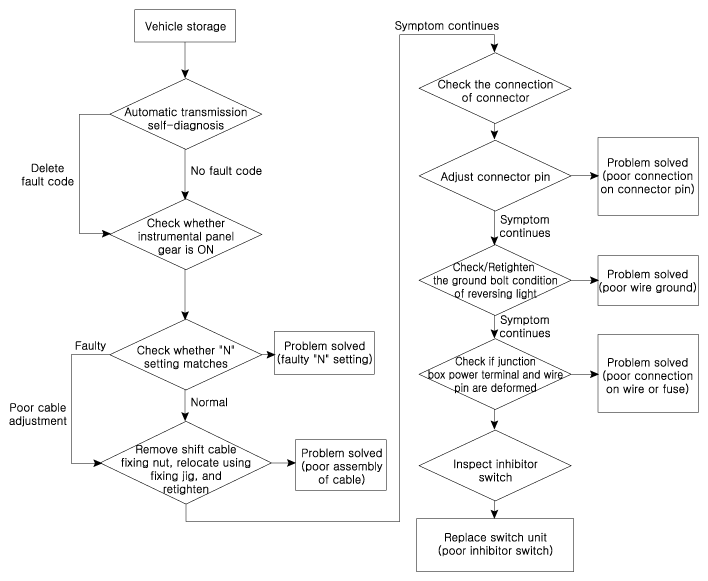

Fig 1: Inhibitor Switch Inspection Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
