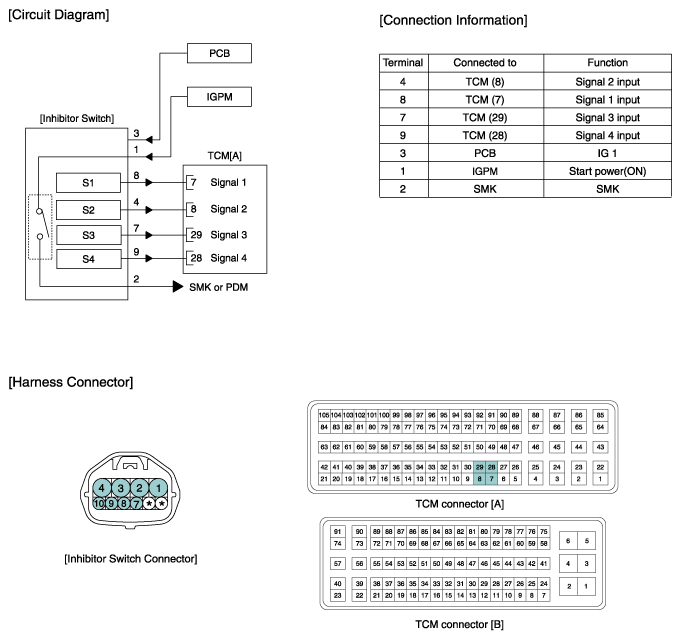

Home › Hyundai › 2017 › Sonata Plug-In Hybrid › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System (PHEV) › Inhibitor Switch › Schematic Diagrams › Circuit Diagram
