Hyundai
›
2017
›
Sonata Plug-In Hybrid
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Automatic Transaxle Control System (PHEV)
›
Line Pressure Control Solenoid Valve
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

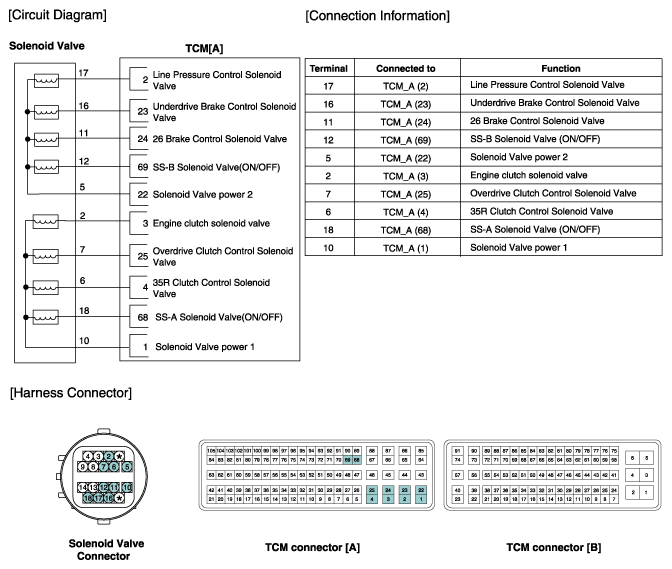

Fig 1: Line Pressure Control Solenoid Valve Circuit Diagram and Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
