Circuit Diagram

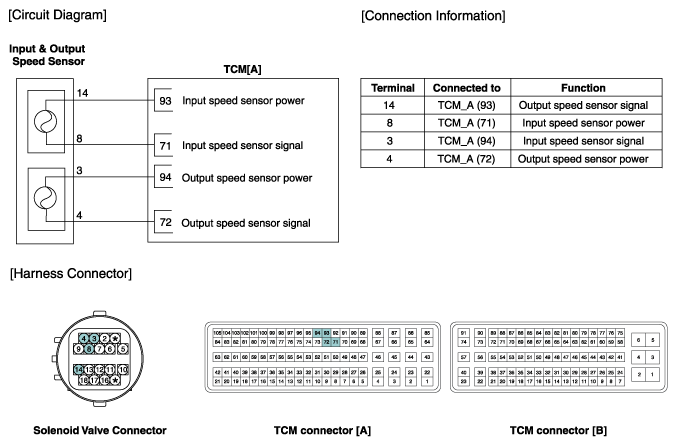

Fig 1: Output Speed Sensor Circuit Diagram and Connector End View
G11631296Courtesy of HYUNDAI MOTOR AMERICA
