Schematic Diagrams
Schematic Diagrams

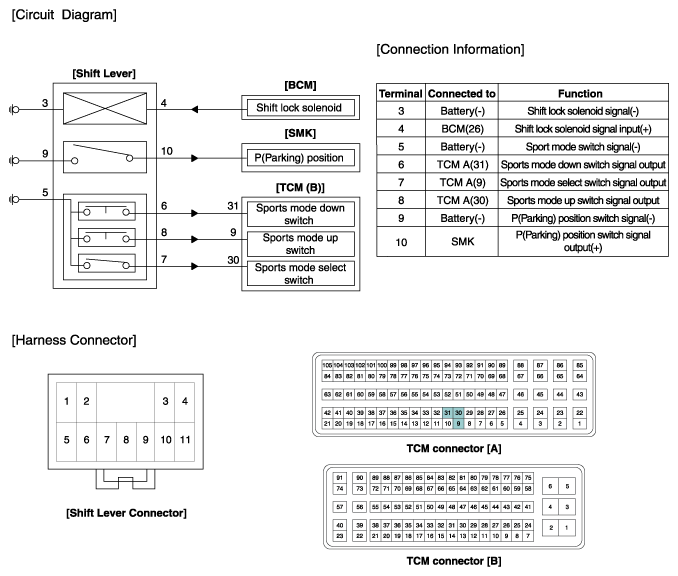

Fig 1: Shift Lever Schematic Diagrams and Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
