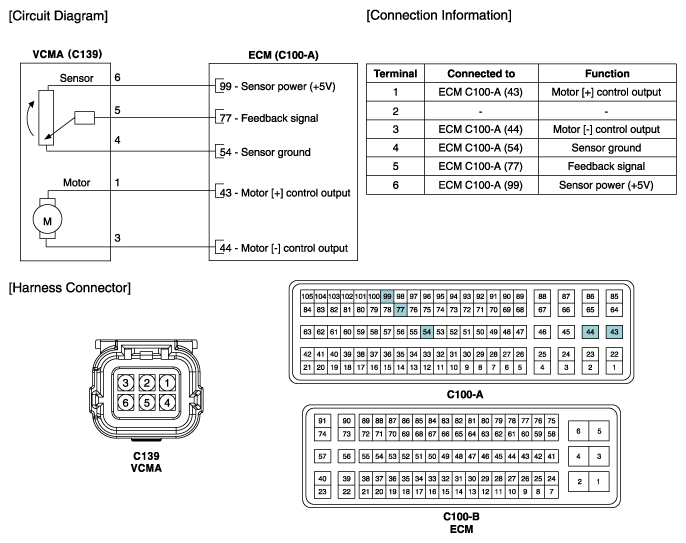

Home › Hyundai › 2017 › Sonata SE › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L (Except HEV) › Variable Charge Motion Actuator (VCMA) › Schematic Diagrams
