Engine Control System - 1.6L
›
RCV Control Solenoid Valve
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

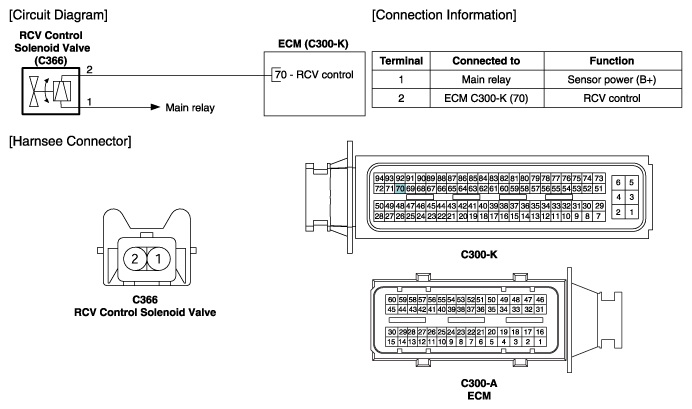

Fig 1: Recirculation Valve Control Solenoid Valve Circuit, Connector Terminals And Description Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
