Signal Waveform

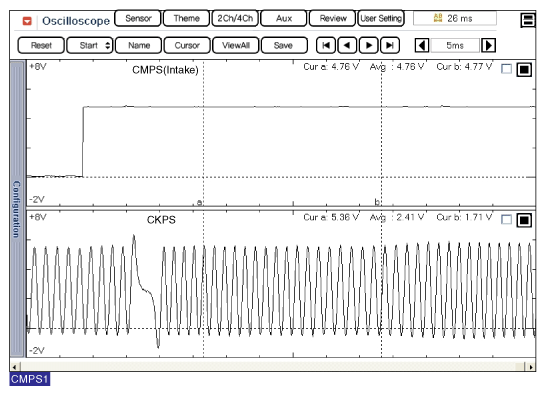

Fig 1: Scantool Display - Signal Waveform Of Camshaft Position Sensor And Crankshaft Position Sensor
G12044318Courtesy of HYUNDAI MOTOR AMERICA

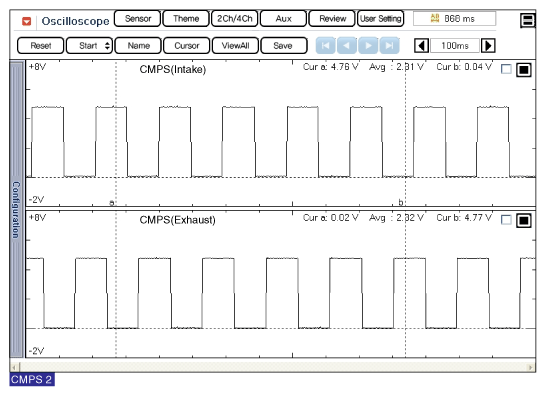

Fig 2: Scantool Display - Signal Waveform Of Camshaft Position Sensors
G12044319Courtesy of HYUNDAI MOTOR AMERICA
