Circuit Diagram

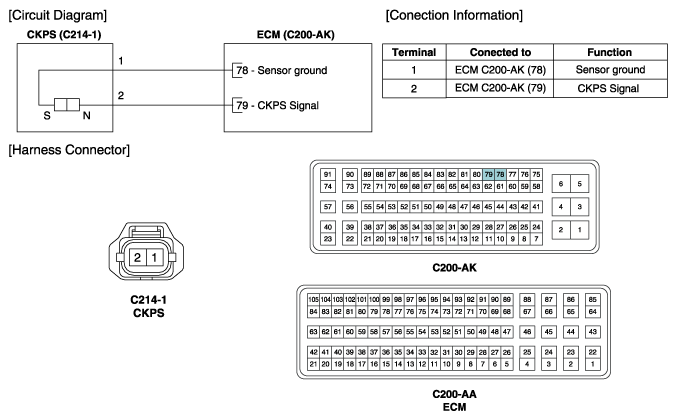

Fig 1: Crankshaft Position Sensor Circuit, Connector Terminals And Description Chart
G12044314Courtesy of HYUNDAI MOTOR AMERICA
