Circuit Diagram

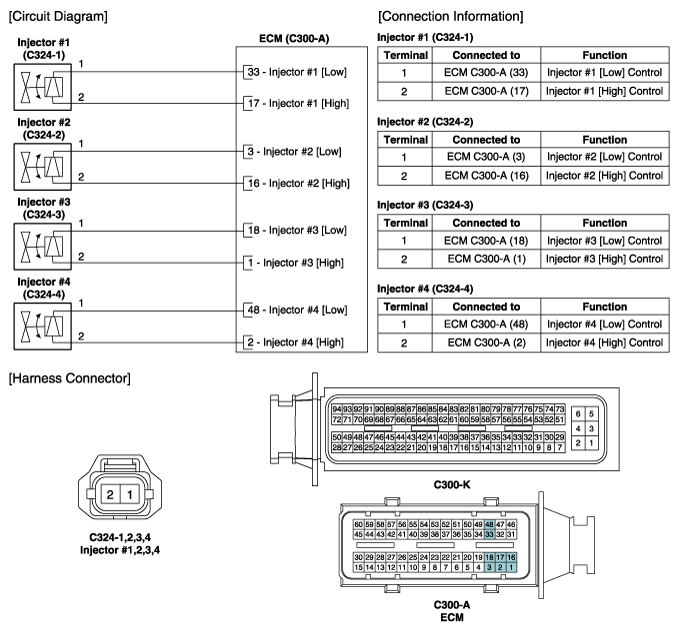

Fig 1: Injector Circuits, Connector Terminals And Description Charts
G12044349Courtesy of HYUNDAI MOTOR AMERICA
