Components Location (2)

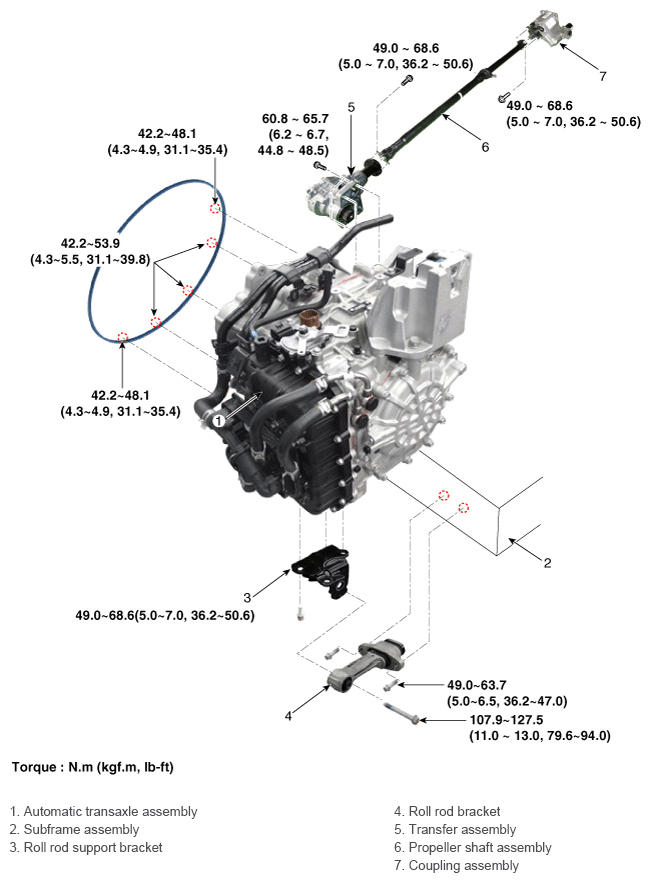

Fig 1: Automatic Transaxle Components With Torque Specifications (2 Of 2)
G12044490Courtesy of HYUNDAI MOTOR AMERICA
