Home › Hyundai › 2017 › Tucson SE, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.0L › Shift Cable › Components And Components Location › Components

Components And Components Location: Components

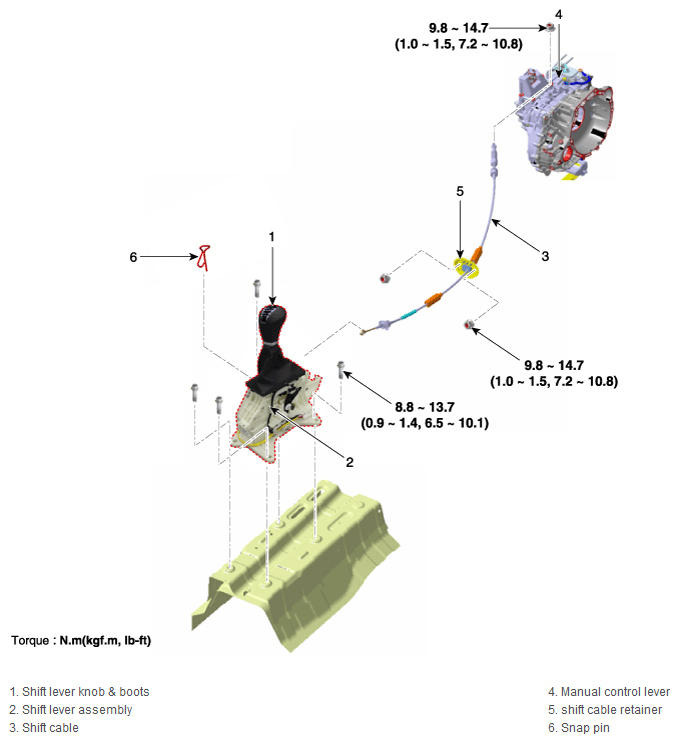

Fig 1: Shift Cable Components With Torque Specifications
G12044683Courtesy of HYUNDAI MOTOR AMERICA
