Home › Hyundai › 2017 › Tucson SE, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.0L › Shift Lever › Components And Components Location › Components

Components And Components Location: Components

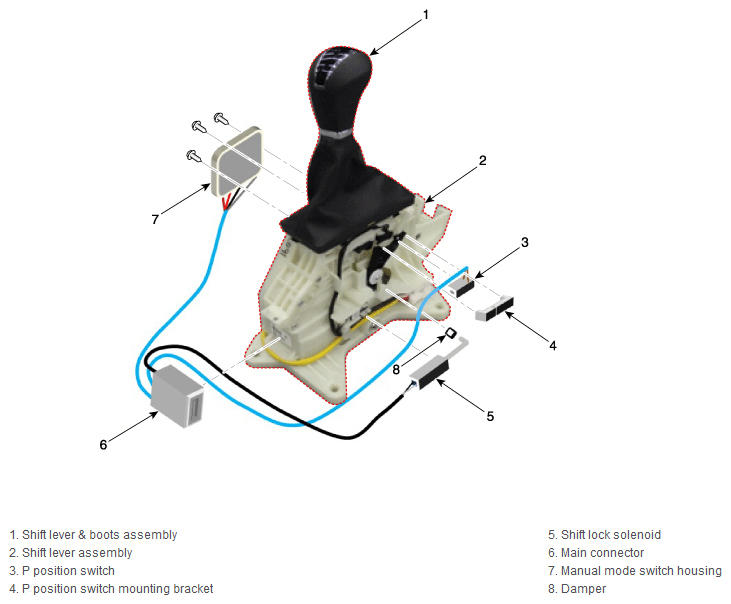

Fig 1: Shift Lever Components
G12044666Courtesy of HYUNDAI MOTOR AMERICA
