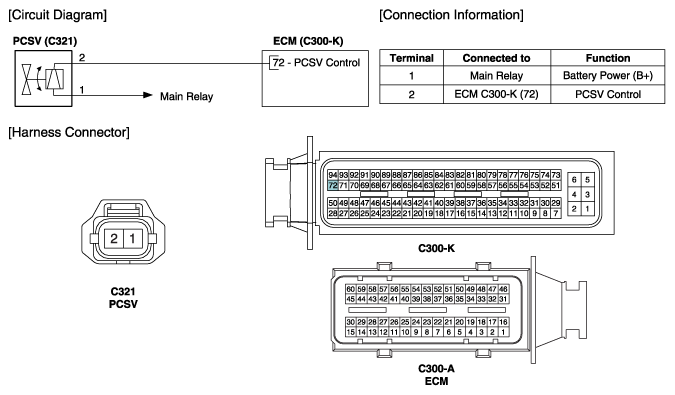

Home › Hyundai › 2017 › Tucson Value, 4WD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Purge Control Solenoid Valve (PCSV) › Schematic Diagrams › Circuit Diagram
