Components And Components Location: Components

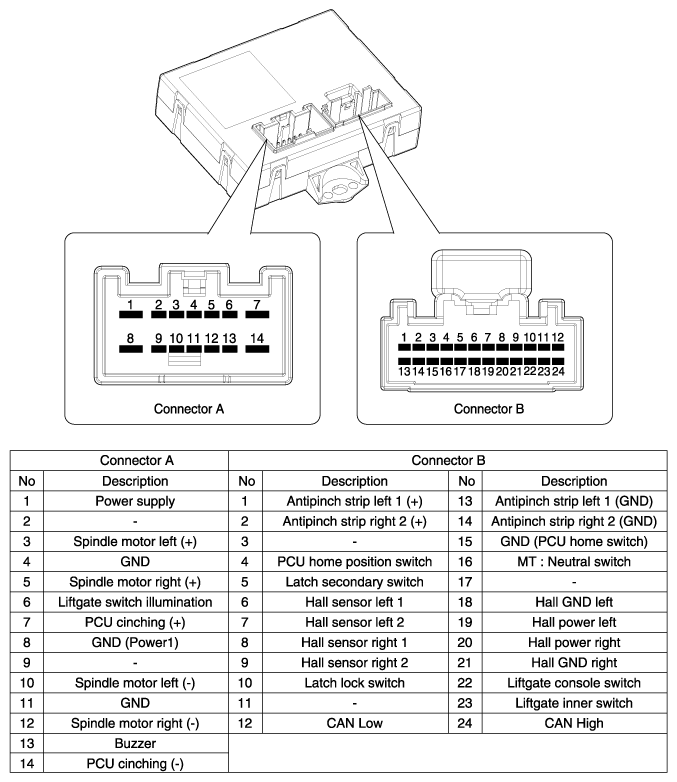

Fig 1: Power Liftgate Module Connectors And Terminal Description Chart
G12043024Courtesy of HYUNDAI MOTOR AMERICA
