Components And Components Location: Components

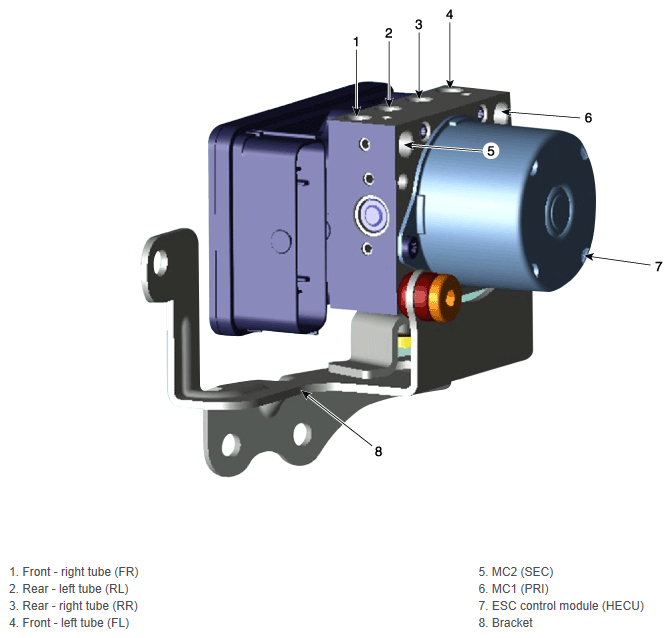

Fig 1: ESC Control Module Components
G12041566Courtesy of HYUNDAI MOTOR AMERICA
