Components And Components Location: Components

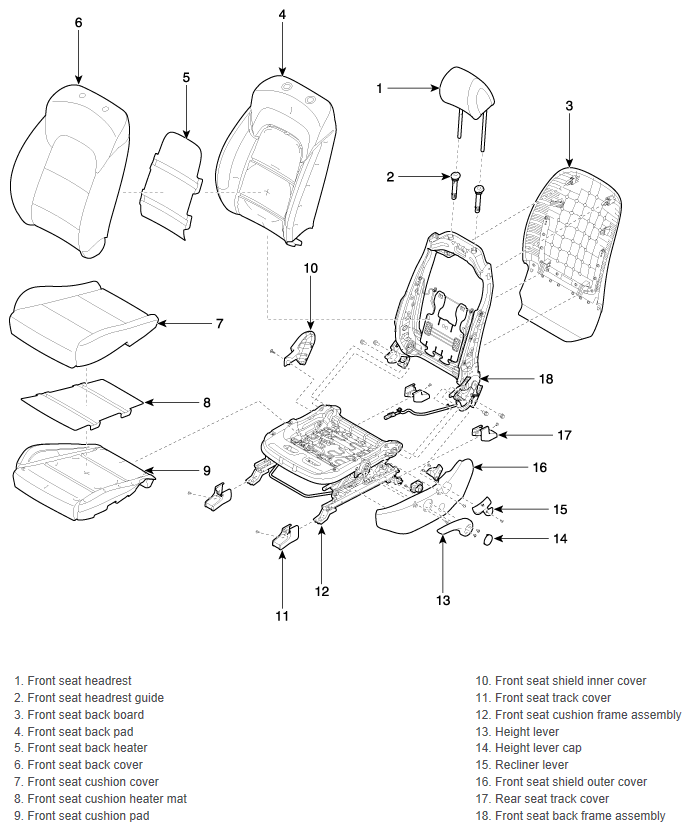

Fig 1: Front Seat Components
G12042398Courtesy of HYUNDAI MOTOR AMERICA
