Components And Components Location: Components

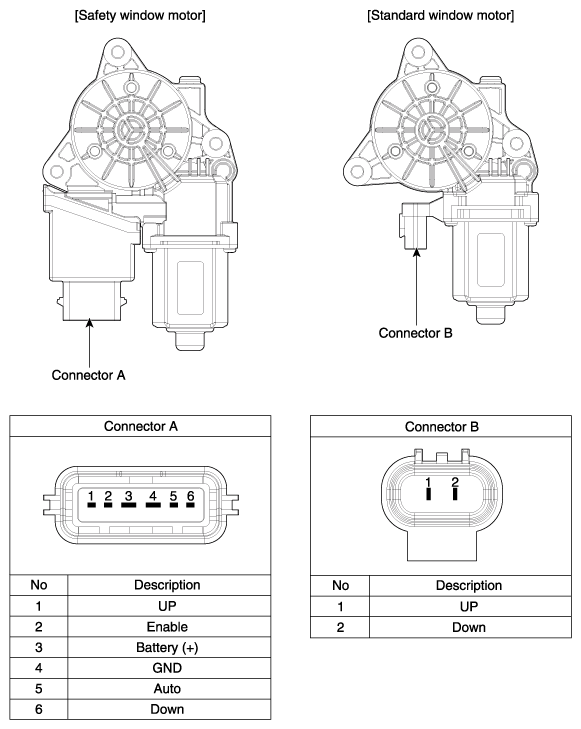

Fig 1: Power Window Motor Connectors, Terminals And Description Charts
G12042958Courtesy of HYUNDAI MOTOR AMERICA
