Assist Power Window Switch
Assist Power Window Switch

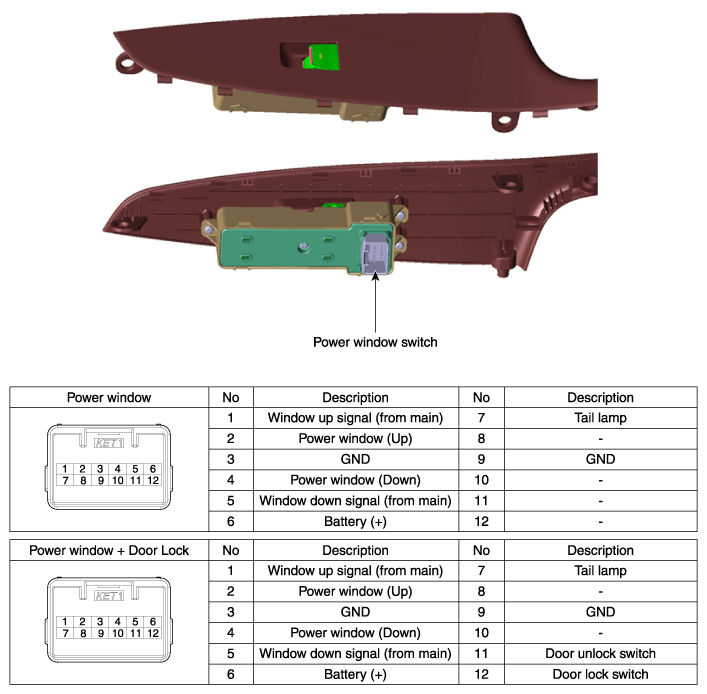

Fig 1: Assist Power Window Switch Connectors, Terminals And Description Charts
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
