Components And Components Location
›
Components
›
Driver Power Window Switch
Driver Power Window Switch

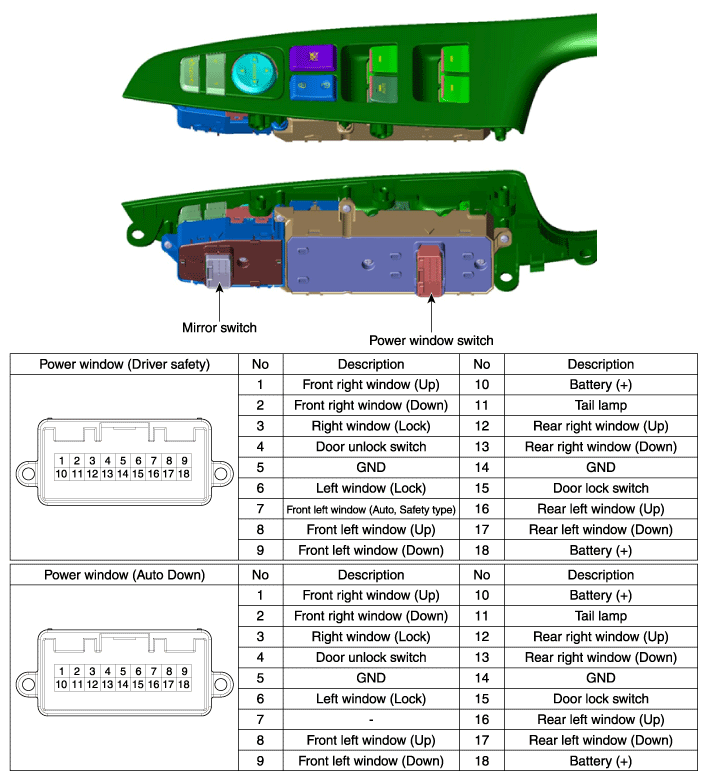

Fig 1: Driver Power Window Switch Connectors, Terminals And Description Charts
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
