Home › Hyundai › 2017 › Tucson Value, FWD › Repair and Diagnosis › Drivelines & Axles › Wheel Hubs › Front Axle Assembly › Front Hub/Knuckle/Tone Wheel › Components And Components Location › Components

Components And Components Location: Components

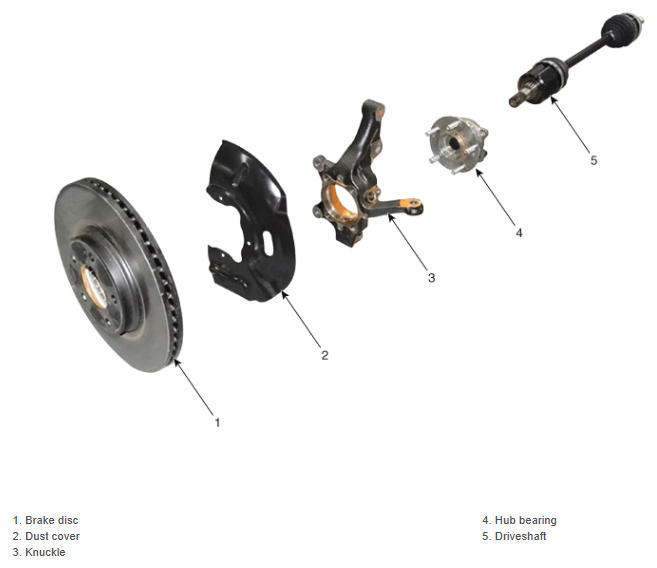

Fig 1: Front Hub/Knuckle/Tone Wheel Components
G12040937Courtesy of HYUNDAI MOTOR AMERICA
