Circuit Diagram
Circuit Diagram

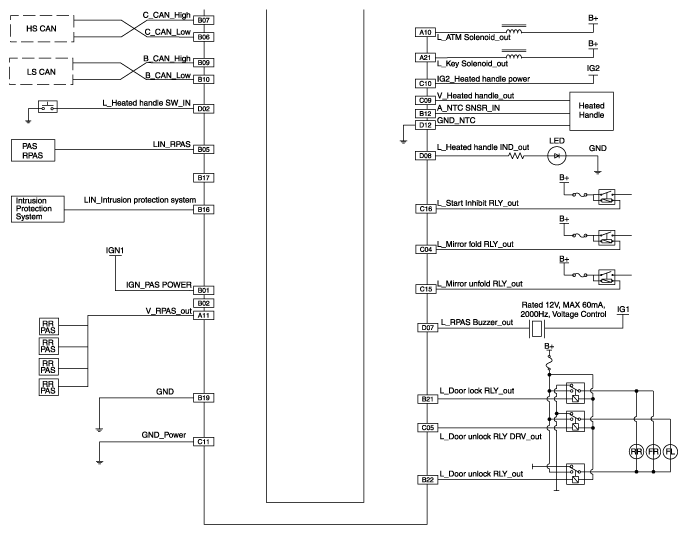

Fig 1: Body Control Module Circuit (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

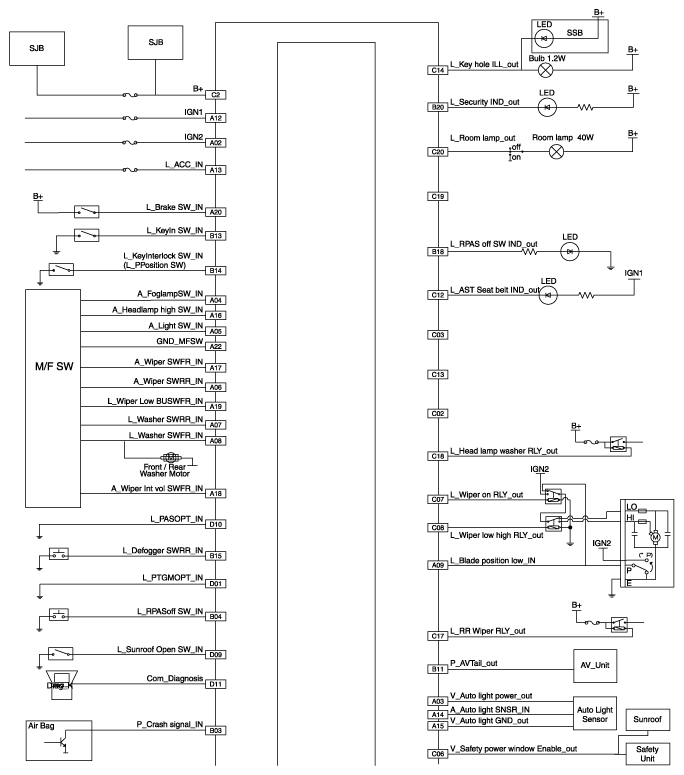

Fig 2: Body Control Module Circuit (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
