Home › Hyundai › 2017 › Tucson Value, FWD › Repair and Diagnosis › Electrical › Charging Systems › Charging System - 1.6L › Alternator › Components And Components Location › Components

Components And Components Location: Components

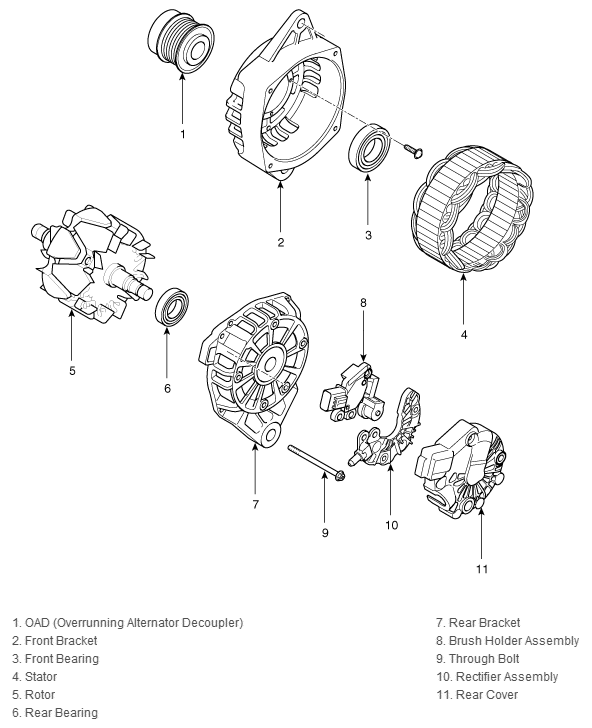

Fig 1: Alternator Components
G12039213Courtesy of HYUNDAI MOTOR AMERICA
