Home › Hyundai › 2017 › Tucson Value, FWD › Repair and Diagnosis › Electrical › Starter › Button Engine Start System › Start/Stop Button › Components And Components Location › Component

Components And Components Location: Component

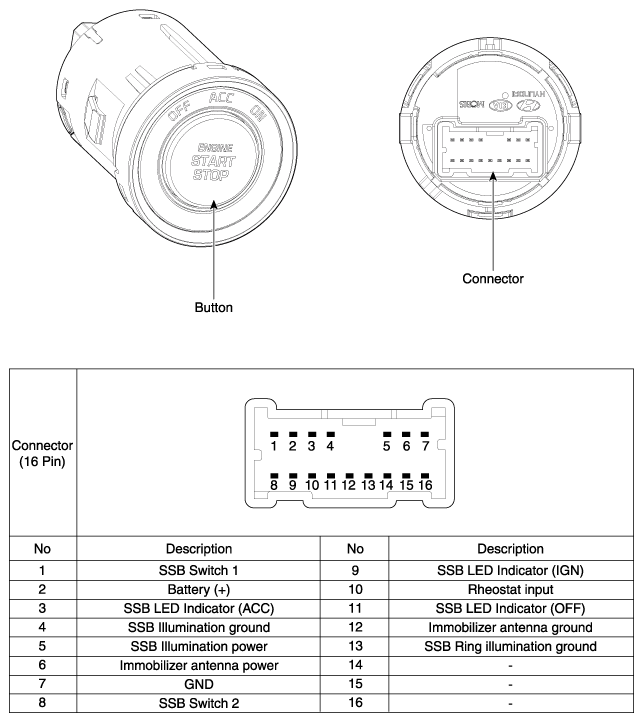

Fig 1: Start/Stop Button, Connector Terminals And Description Chart
G12043331Courtesy of HYUNDAI MOTOR AMERICA
