Components And Components Location: Components

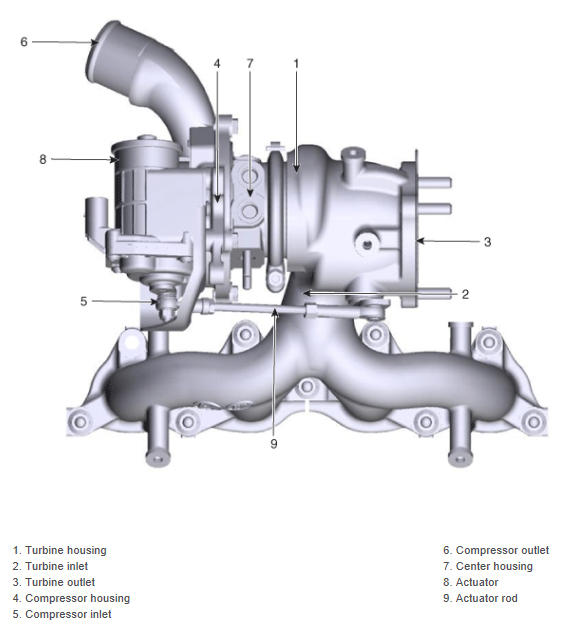

Fig 1: Turbo Charger Components Location
G12039167Courtesy of HYUNDAI MOTOR AMERICA
