Home › Hyundai › 2017 › Tucson Value, FWD › Repair and Diagnosis › Engine Mechanical › Lubrication System - 1.6L › Oil pump › Components And Components Location › Components

Components And Components Location: Components

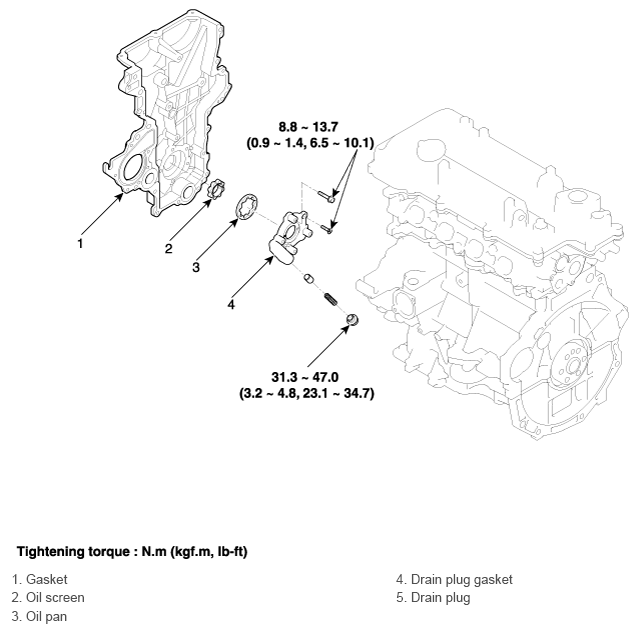

Fig 1: Oil Pump Components With Torque Specification
G12039119Courtesy of HYUNDAI MOTOR AMERICA
