Components And Components Location: Components

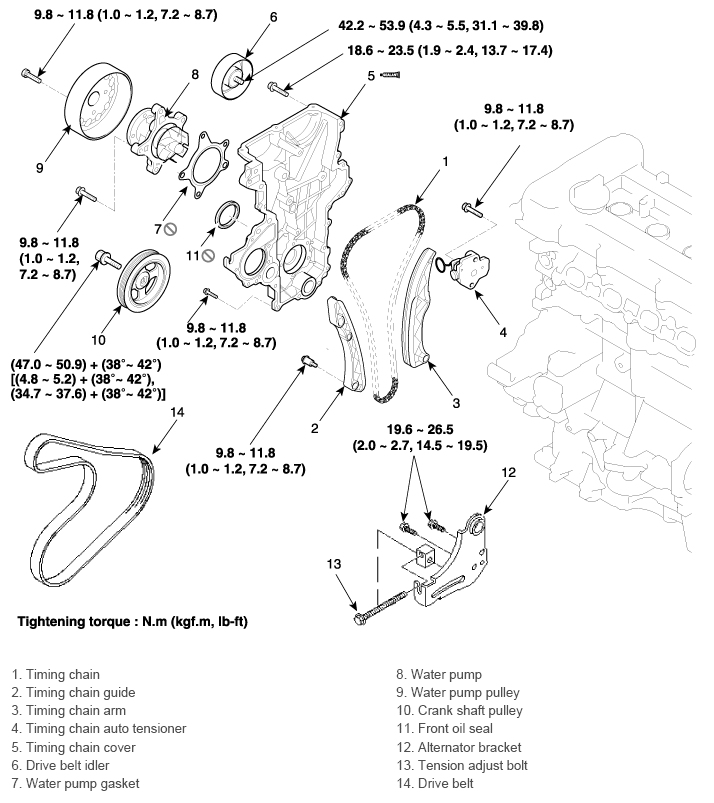

Fig 1: Timing System Components With Torque Specifications
G12038485Courtesy of HYUNDAI MOTOR AMERICA
