Components And Components Location: Components

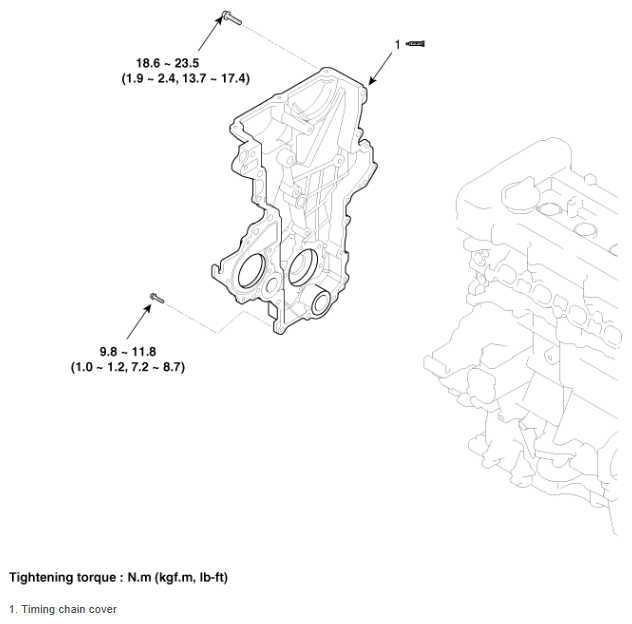

Fig 1: Timing Chain Cover Component With Torque Specifications
G12038512Courtesy of HYUNDAI MOTOR AMERICA
