Engine Control System - 1.6L
›
CVVT Oil Control Valve (OCV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

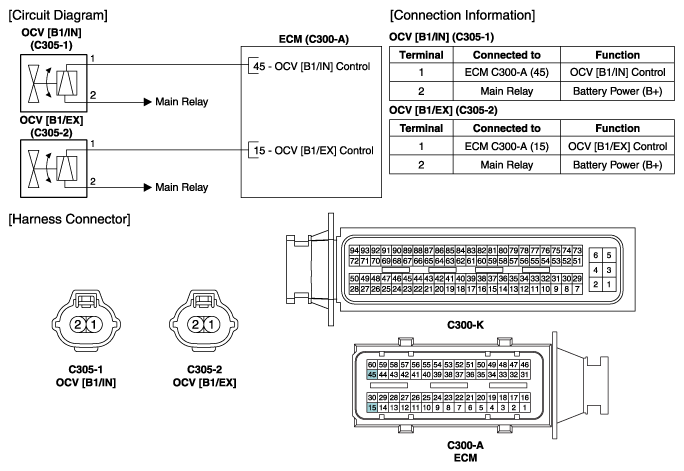

Fig 1: Continuous Variable Valve Timing Oil Control Valve Circuit, Connector Terminals And Description Charts
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
