Circuit Diagram

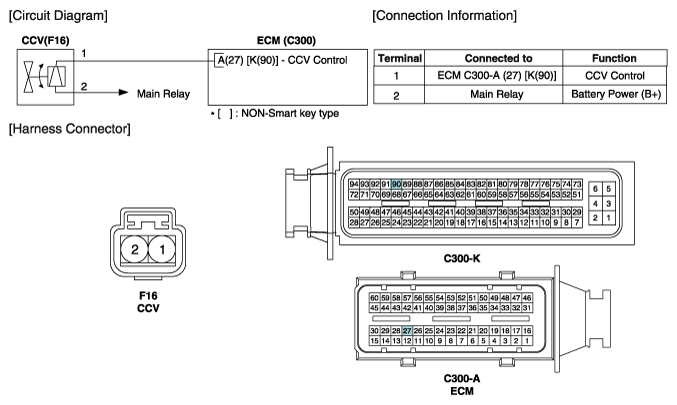

Fig 1: Canister Close Valve Circuit, Connector Terminals And Description Chart
G12039444Courtesy of HYUNDAI MOTOR AMERICA
