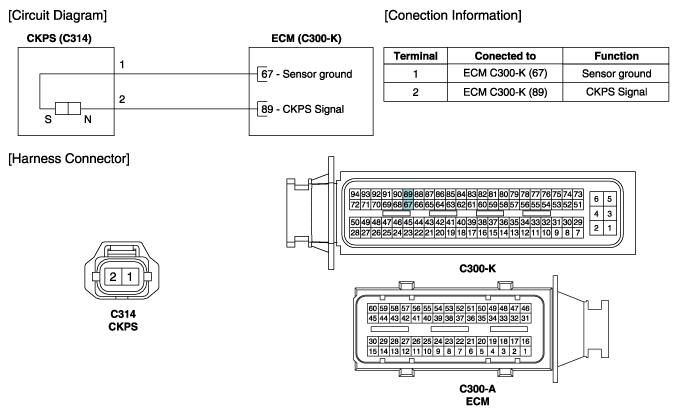

Home › Hyundai › 2017 › Tucson Value, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Crankshaft Position Sensor (CKPS) › Schematic Diagrams › Circuit Diagram
