Hyundai
›
2017
›
Tucson Value, FWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 1.6L
›
Electric WGT Control Actuator
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

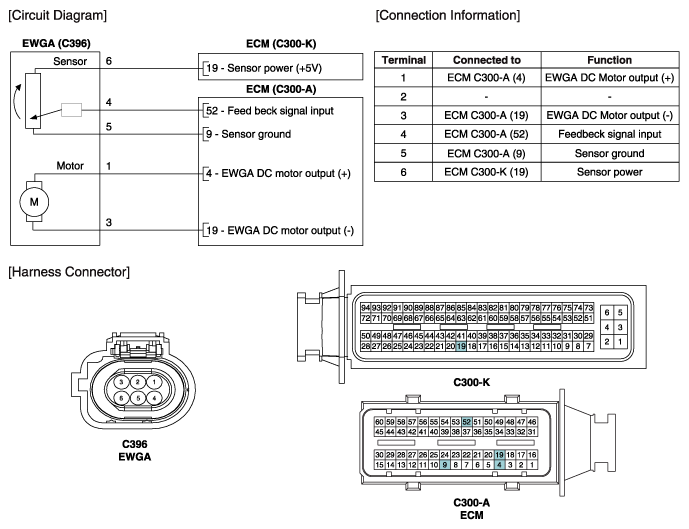

Fig 1: Electric Waste Gate Actuator Circuit, Connector Terminals And Description Chart
