Circuit Diagram

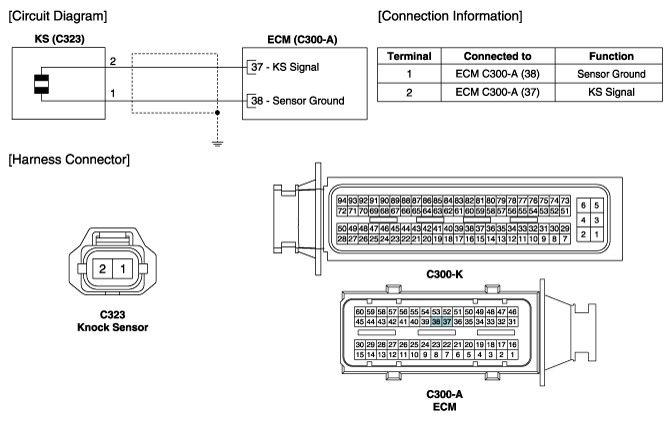

Fig 1: Knock Sensor Circuit, Connector Terminals And Description Chart
G12039388Courtesy of HYUNDAI MOTOR AMERICA
