Engine Control System - 1.6L
›
Manifold Absolute Pressure Sensor (MAPS)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

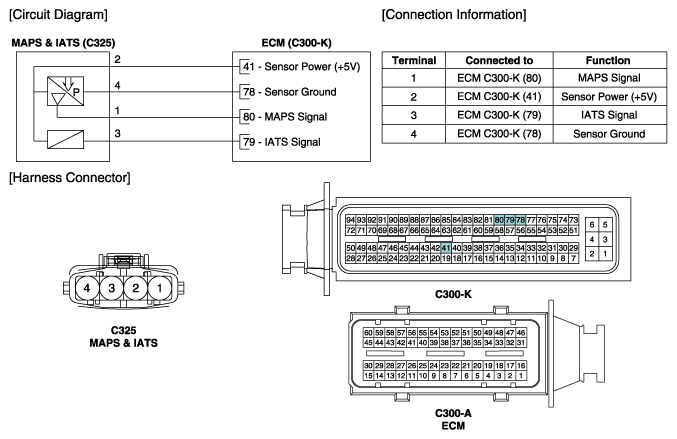

Fig 1: Manifold Absolute Pressure Sensor Circuit, Connector Terminals And Description Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
