Components Location (1)

WARNING: This page is about a different variant/trim than selected.

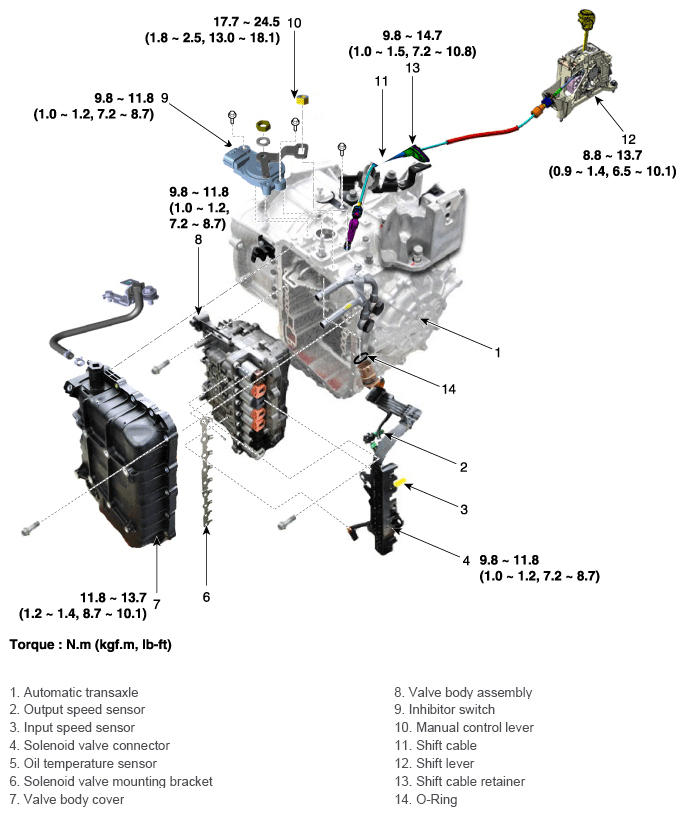

Fig 1: Automatic Transaxle Control System Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA
