Section 30 (Coupling Assembly)
›
Pressure Sensor
›
Repair Procedures
›
Inspection
›
Pressure Sensor Inspection Procedure
Pressure Sensor Inspection Procedure
WARNING:
This page is about a different variant/trim than selected.

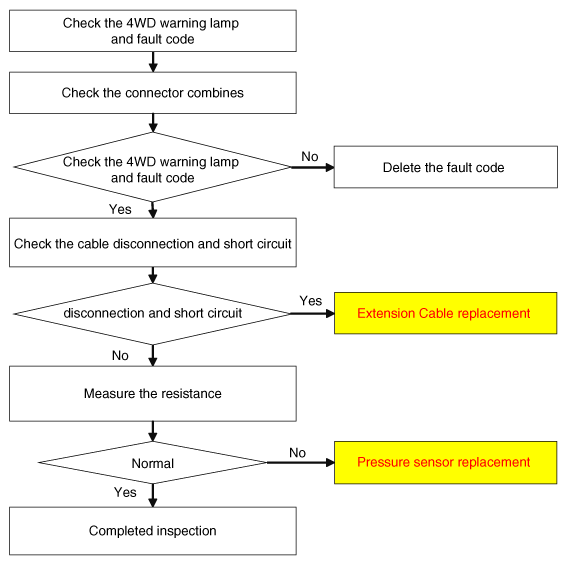

Fig 1: Pressure Sensor Inspection Procedure Chart
Courtesy of HYUNDAI MOTOR AMERICA
