Components And Components Location: Components

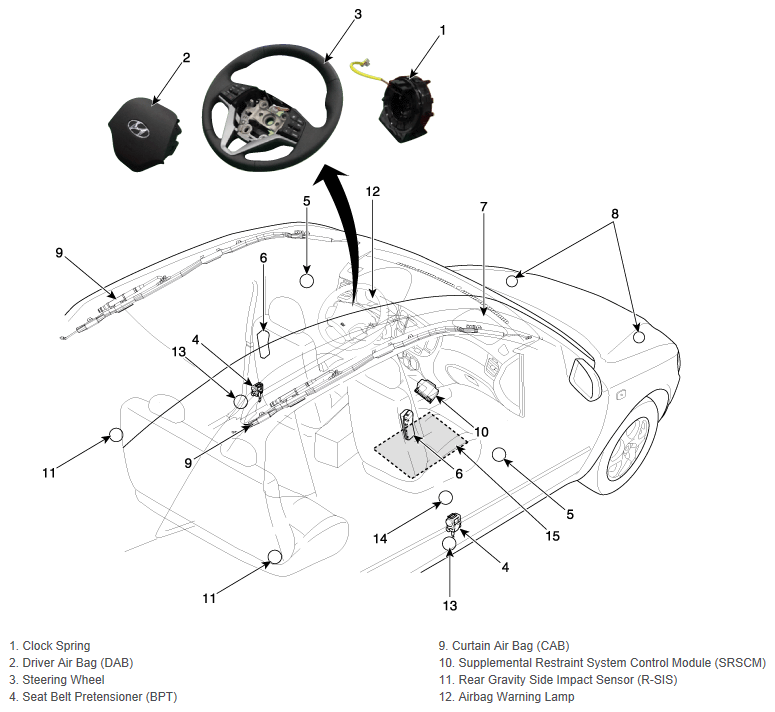

Fig 1: SRSCM Components
G12041345Courtesy of HYUNDAI MOTOR AMERICA
