Components And Components Location: Components

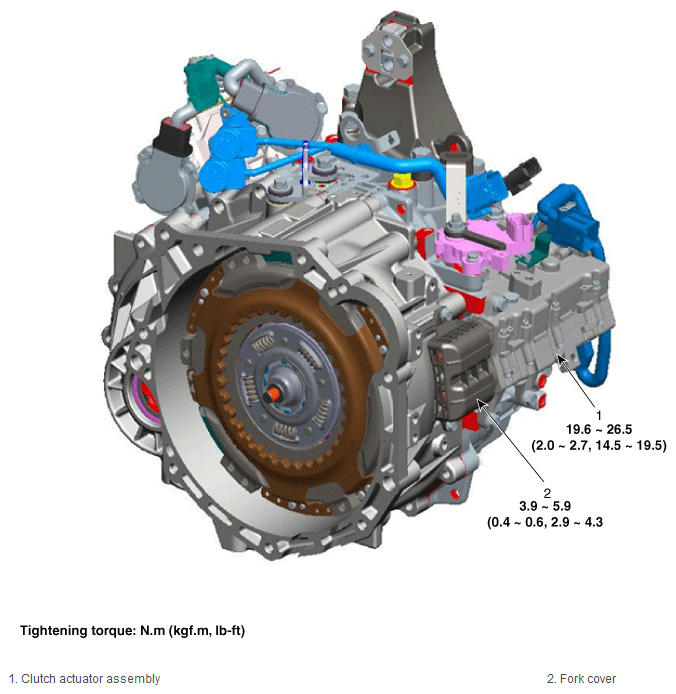

Fig 1: Clutch Actuator Assembly Components With Torque Specification
G12039568Courtesy of HYUNDAI MOTOR AMERICA
