Home › Hyundai › 2017 › Tucson Value, FWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Dual Clutch Transmission Control System - 1.6L › Gear Actuator Assembly › Components And Components Location › Components

Components And Components Location: Components

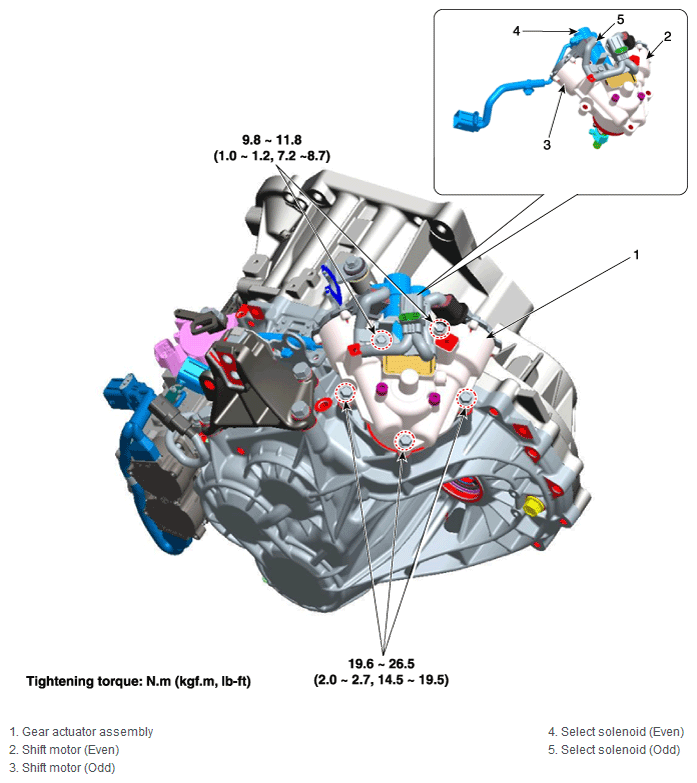

Fig 1: Gear Actuator Assembly Components With Torque Specification
G12039602Courtesy of HYUNDAI MOTOR AMERICA
