Component Locations

Fig 1: Locating Front Driveshaft Components
G12125187Courtesy of HYUNDAI MOTOR AMERICA

[RH]

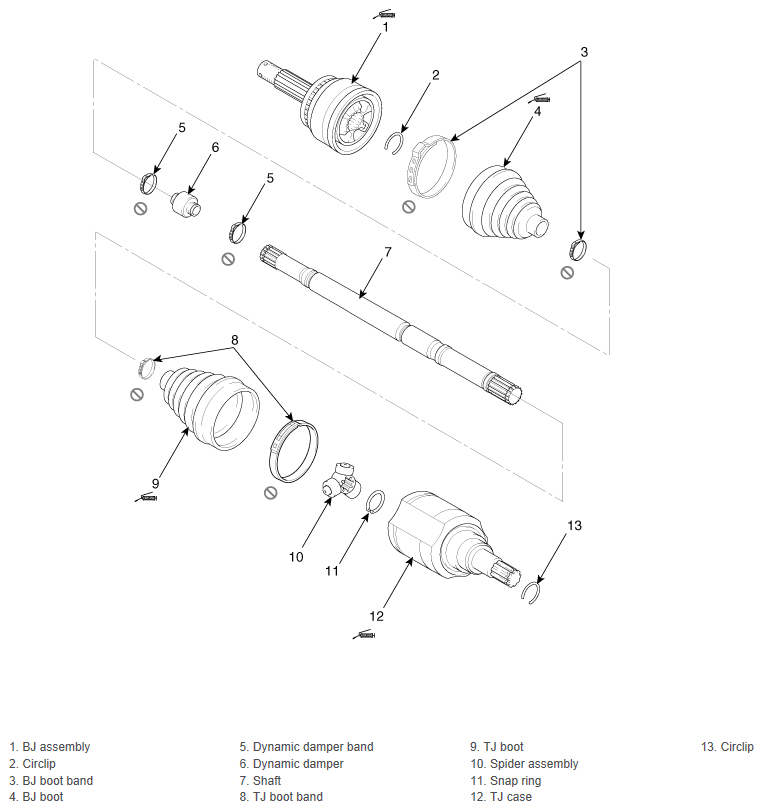

Fig 2: Exploded View Of Front Driveshaft (RH)
G12125188Courtesy of HYUNDAI MOTOR AMERICA

[LH]

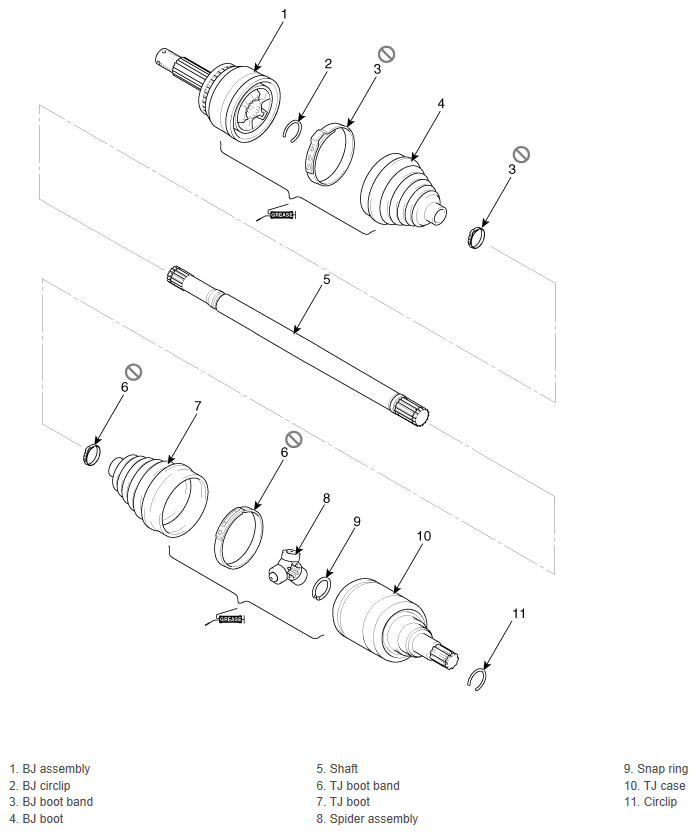

Fig 3: Exploded View Of Front Driveshaft (LH)
G12125189Courtesy of HYUNDAI MOTOR AMERICA
