Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System - 1.6L GDI
›
CVVT Oil Control Valve (OCV)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

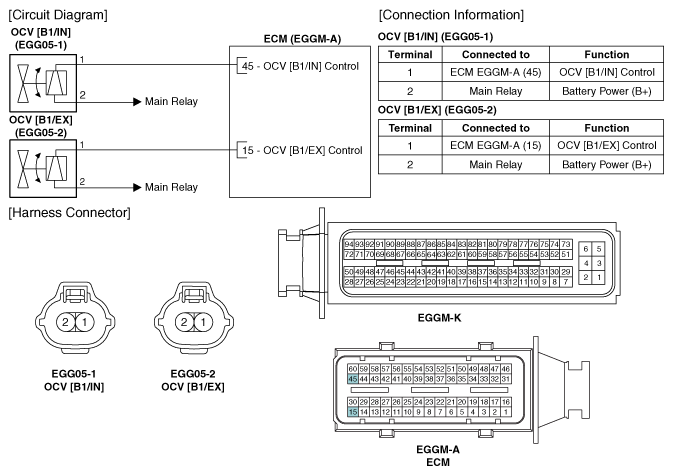

Fig 1: Continuous Variable Valve Timing Oil Control Valve Circuit And Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
