Engine Control System - 1.6L GDI
›
Engine Control Module (ECM)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

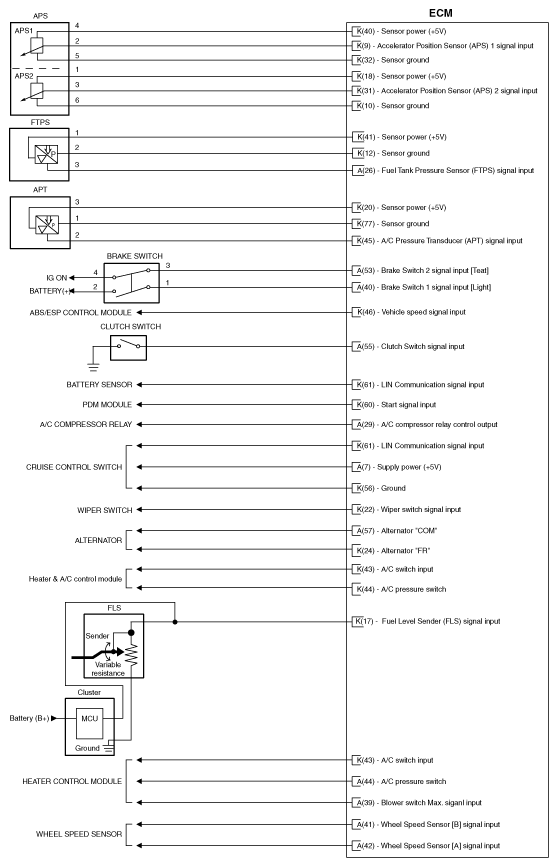

Fig 1: Engine Control Module Circuit (1 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

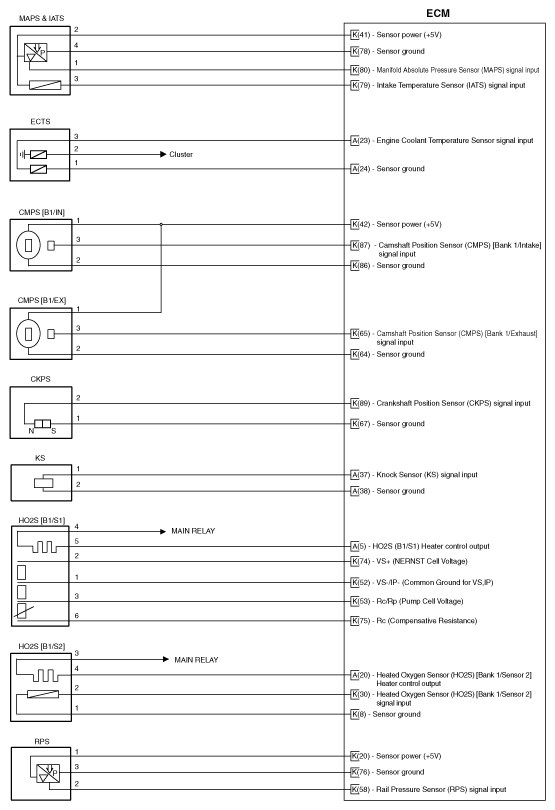

Fig 2: Engine Control Module Circuit (2 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

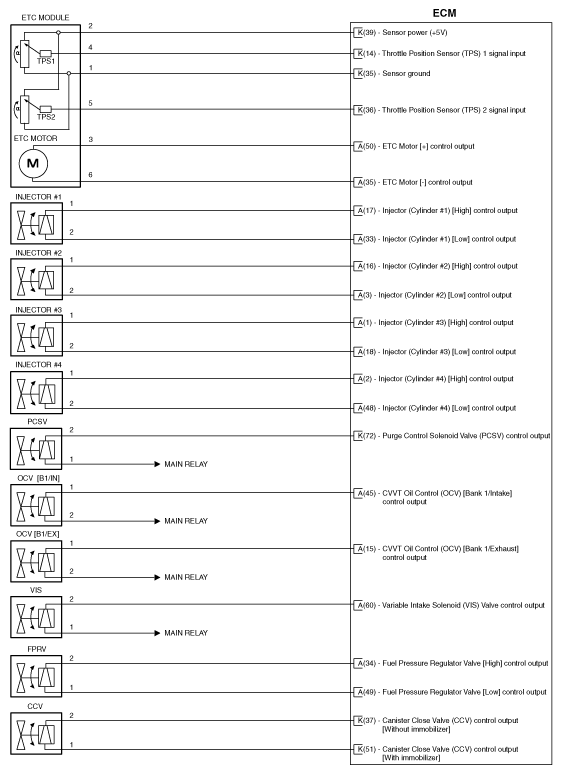

Fig 3: Engine Control Module Circuit (3 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA

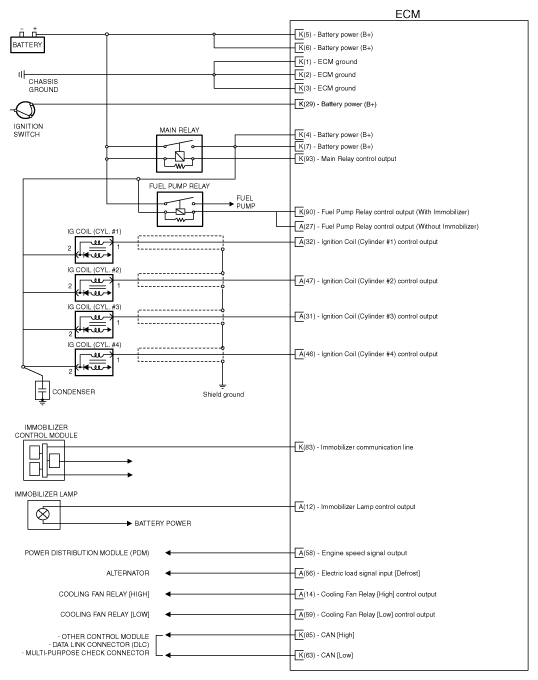

Fig 4: Engine Control Module Circuit (4 Of 4)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
