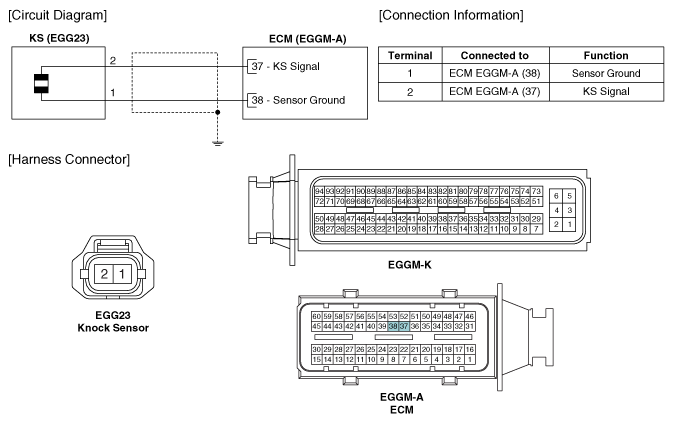

Home › Hyundai › 2017 › Veloster Base, Automatic DCT Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L GDI › Knock Sensor (KS) › Schematic Diagrams › Circuit Diagram
