Components And Components Location: Components

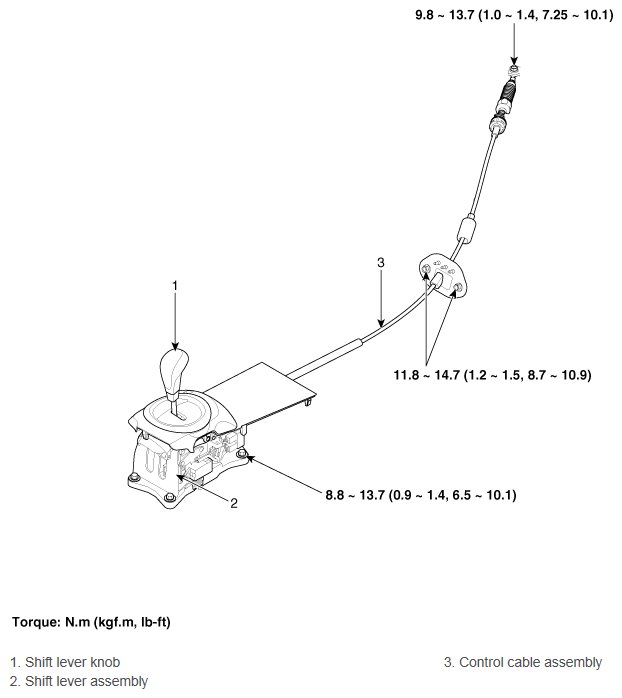

Fig 1: Locating Shift Lever Components With Torque Specifications
G12129631Courtesy of HYUNDAI MOTOR AMERICA
